Industrial Worm Gear Assemblies

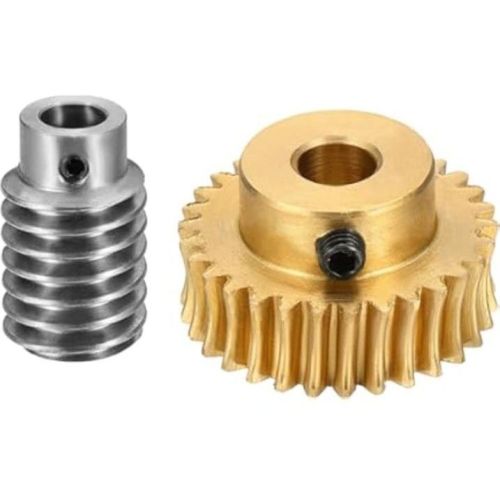

Leading Manufacturers, Exporters, Wholesaler, Retailer and Distributor of Industrial Speed Reducer Worm Gear, Industrial Worm Wheel Set, Precision Brass Worm Gear Set, Precision Bronze Worm Wheel Set, Precision Worm Gear Drive Set, Precision Worm Gear Set and Precision Worm Shaft from Delhi.
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Distributor |
| Application | Speed Reducers,Industrial Gearboxes,Packaging Machinery,Conveyor Systems,Material Handling Equipment,Power Transmission |
| Gear Ratio | 5:1 To 100:1 |
| Gear Type | Worm Gear Assembly |
| Material | Phosphor Bronze Worm Wheel, Alloy Steel Worm Shaft |
| Brand Name | R.B. GEARS TECH |
| Country of Origin | India |
| Shape | Round, Worm |
| Packaging Type | Corrugated Box, Wooden Crate |
| Module Range | 1 Module To 16 Module |
| Number Of Teeth | 20 To 120 Teeth |
| Worm Starts | Single, Double, Triple, Multi Start |
| Outside Diameter | 40mm To 600mm |
| Bore Size | As Per Drawing / Standard |
| Pressure Angle | 20° |
| Hardness | Worm Shaft 55–62 HRC (Heat Treated) |
| Accuracy Grade | DIN 6 To DIN 10 |
| Manufacturing Process | CNC Turning, Gear Hobbing, Gear Grinding |
| Surface Finish | Ground, Polished, Bronze Finish, Black Oxide |
| Heat Treatment | Carburized, Induction Hardened, Tempered |
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Distributor |
| Packaging Type | Cardboard Box |
| Country of Origin | India |
| Material | Aluminium, Steel |
| Usage/Application | Speedometers, Automotive Instruments |
| Finishing | Polished |
| Gear Type | Worm Set |
| Module Range | 1 Module To 10 Module |
| Number Of Teeth | 10 To 50 Teeth |
| Gear Ratio | 3:1 To 20:1 |
| Outside Diameter | 30 Mm To 200 Mm |
| Pressure Angle | 20° |
| Hardness | 50-60 HRC |
| Accuracy Grade | DIN 7 To DIN 9 |
| Manufacturing Process | CNC Machined, Gear Hobbing |
| Surface Finish | Polished |
| Heat Treatment | Carburized, Tempered |
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Distributor |
| Application | Industrial Gearboxes, Material Handling Equipment, Conveyor Systems, Packaging Machinery, Lifting Equipment, Power Transmission Systems |
| Packaging | Corrugated Box, Wooden Crate |
| Country of Origin | India |
| Brand Name | R.B. GEARS TECH |
| Material | Brass Worm Wheel, Alloy Steel Worm Shaft |

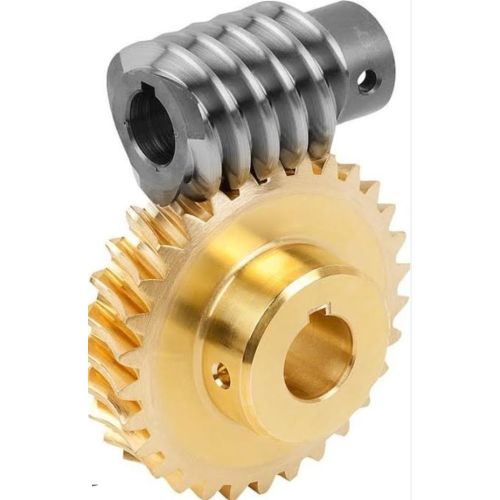

| Gear Type | Brass Worm Gear Set |
| Module Range | 1 Module To 20 Module |
| Number Of Teeth | 20 To 150 Teeth |
| Gear Ratio | 5:1 To 100:1 |
| Outside Diameter | 50 Mm To 800 Mm |
| Bore Size | As Per Drawing / Standard |
| Pressure Angle | 20° |
| Hardness | Worm Shaft 55–62 HRC (Heat Treated) |
| Accuracy Grade | DIN 6 To DIN 10 |
| Manufacturing Process | CNC Machined, Gear Hobbing, Gear Grinding |
| Surface Finish | Ground, Polished, Natural Brass Finish, Black Oxide |
| Heat Treatment | Carburized, Induction Hardened, Tempered |
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Distributor |
| Brand Name | R.B. GEARS TECH |
| Material | Bronze Worm Wheel, Alloy Steel Worm Shaft |
| Gear Type | Bronze Worm Wheel Set |
| Module Range | 1 Module To 20 Module |
| Number Of Teeth | 20 To 150 Teeth |
| Gear Ratio | 5:1 To 100:1 |
| Outside Diameter | 50 Mm To 800 Mm |
| Bore Size | As Per Drawing / Standard |
| Pressure Angle | 20° |
| Hardness | Worm Shaft 55–62 HRC (Heat Treated) |
| Accuracy Grade | DIN 6 To DIN 10 |
| Manufacturing Process | CNC Machined, Gear Hobbing, Gear Grinding |
| Surface Finish | Ground, Polished, Bronze Finish, Black Oxide |
| Heat Treatment | Carburized, Induction Hardened, Tempered |
| Application | Worm Gearboxes, Industrial Machinery, Material Handling Equipment, Conveyors, Packaging Machines, Power Transmission Systems |
| Packaging Type | Corrugated Box, Wooden Crate |
| Country Of Origin | India |
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Distributor |
| Packaging | Corrugated Box, Wooden Crate |
| Country of Origin | India |
| Brand Name | R.B. GEARS TECH |
| Material | Phosphor Bronze Worm Wheel, Alloy Steel Worm Shaft |
| Application | Speed Reducers, Worm Gearboxes, Industrial Machinery, Conveyors, Material Handling Equipment, Power Transmission Systems |

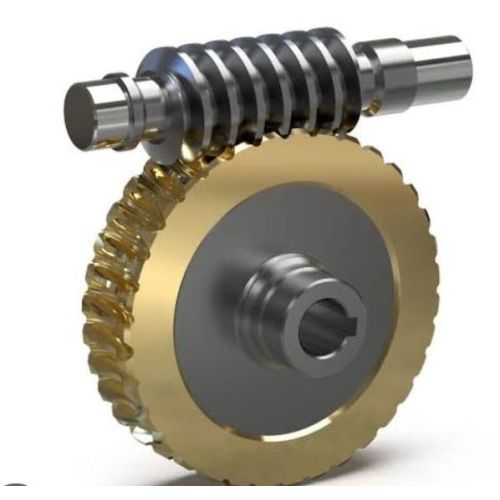

| Gear Type | Worm Gear Drive Set |
| Module Range | 1 Module To 20 Module |
| Number Of Teeth | 20 To 150 Teeth |
| Gear Ratio | 5:1 To 100:1 |
| Outside Diameter | 50 Mm To 800 Mm |
| Bore Size | As Per Drawing / Standard |
| Pressure Angle | 20° |
| Worm Starts | Single, Double, Triple, Multi Start |
| Hardness | Worm Shaft 55–62 HRC (Heat Treated) |
| Accuracy Grade | DIN 6 To DIN 10 |
| Manufacturing Process | CNC Machined, Gear Hobbing, Gear Grinding |
| Surface Finish | Ground, Polished, Bronze Finish, Black Oxide |
| Heat Treatment | Carburized, Induction Hardened, Tempered |
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Distributor |
| Brand Name | R.B. GEARS TECH |
| Material | Phosphor Bronze Gear, Alloy Steel Worm Shaft |
| Application | Gearboxes, Conveyor Systems, Material Handling Equipment, Packaging Machinery, Lifting Equipment, Industrial Power Transmission |
| Packaging | Corrugated Box, Wooden Crate |
| Country of Origin | India |
| Gear Type | Worm Gear Set |
| Module Range | 1 Module - 16 Module |
| Number Of Teeth | 20 Teeth - 120 Teeth |
| Gear Ratio | 5:1 - 100:1 |
| Outside Diameter | 50 Mm - 600 Mm |
| Bore Size | As Per Drawing / Standard |
| Pressure Angle | 20° |
| Hardness | Worm Shaft 55-62 HRC (Heat Treated) |
| Accuracy Grade | DIN 6 - DIN 10 |
| Manufacturing Process | CNC Machined, Gear Hobbing, Gear Grinding |
| Surface Finish | Ground, Polished, Black Oxide |
| Heat Treatment | Carburized, Hardened, Tempered |
| Product Code | BG01 |
| Port | Delhi, India |
| Payment Terms | D/P, T/T, Other |
| Delivery Time | 7–10 business days |
| Packaging Details | Products are packed with anti-rust coating, bubble wrapping, corrugated boxes, and wooden crates to ensure safe transportation and damage-free delivery. |
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Distributor |
| Brand Name | R.B. GEARS TECH |
| Material | EN8, EN19, EN24,Alloy Steel,Stainless Steel |

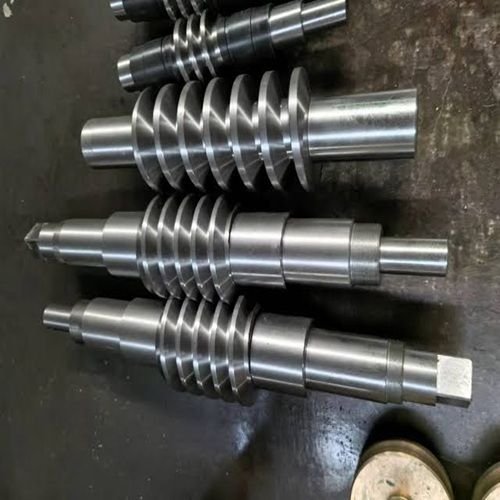

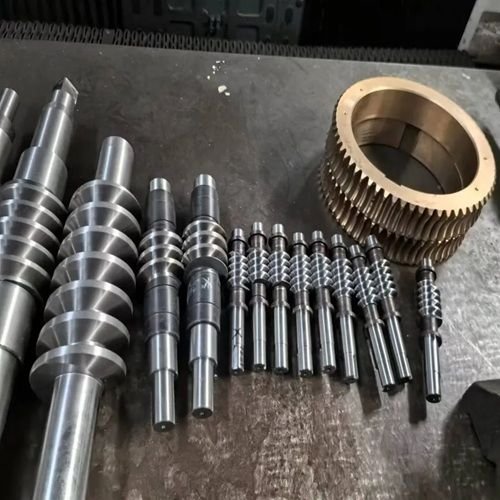

| Type | Worm Shaft |
| Application | Worm Gearboxes, Material Handling Equipment, Conveyors, Industrial Machinery, Lifting Systems, Power Transmission |
| Country of Origin | India |
| Module Range | 1 Module To 16 Module |
| Number Of Starts | Single, Double, Triple & Multi Start |
| Shaft Diameter | 20 Mm To 150 Mm |
| Shaft Length | 100 Mm To 1500 Mm |
| Pressure Angle | 20° |
| Lead Angle | 5° To 30° |
| Hardness | 55–62 HRC (Heat Treated) |
| Accuracy Grade | DIN 6 To DIN 10 |
| Manufacturing Process | CNC Turning, Gear Hobbing & Thread Grinding |
| Surface Finish | Ground, Polished Or Black Oxide |
| Heat Treatment | Carburized, Induction Hardened & Tempered |
| Packaging Type | Corrugated Box / Wooden Crate |
| Product Code | WS01 |
| Port | Delhi, India |
| Payment Terms | D/P, T/T, Other |
| Delivery Time | 7–10 business days |
| Packaging Details | Products are packed with anti-rust coating, bubble wrapping, corrugated boxes, and wooden crates to ensure safe transportation and damage-free delivery. |
