| Business Type | Manufacturer, Exporter, Supplier, Retailer, Distributor |
| Material | EN8, EN19, EN24,Alloy Steel, Stainless Steel |
| Application | Right Angle Gearboxes, Industrial Machinery, Automotive Transmissions, Agricultural Equipment, Power Transmission Systems |
| Country of Origin | India |
| Click to view more | |
Product Details
Brand Name
R.B. GEARS TECH
Gear Type

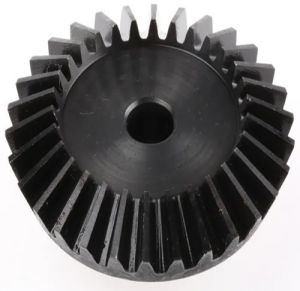

Straight Bevel Gear
Module Range
1 Module To 16 Module
Number Of Teeth
12 To 150 Teeth
Pitch Angle
15° To 90°
Outside Diameter
40 Mm To 800 Mm
Bore Size
As Per Drawing / Standard
Pressure Angle
20° / 14.5°
Hardness
45–60 HRC (Heat Treated)
Accuracy Grade
DIN 6 To DIN 10
Manufacturing Process
CNC Machined, Gear Hobbing & Gear Shaping
Surface Finish
Ground, Polished Or Black Oxide
Heat Treatment
Carburized, Induction Hardened & Tempered
Packaging Type
Corrugated Box / Wooden Crate
Product Code
BG01
Port
Delhi, India
Payment Terms
D/P, T/T, Other
Delivery Time
7–10 business days
Packaging Details
Bevel gears are coated with anti-rust oil and packed in bubble wrap, corrugated boxes, or wooden crates to ensure safe transportation and damage-free delivery.
