Crane Drive Gear Components

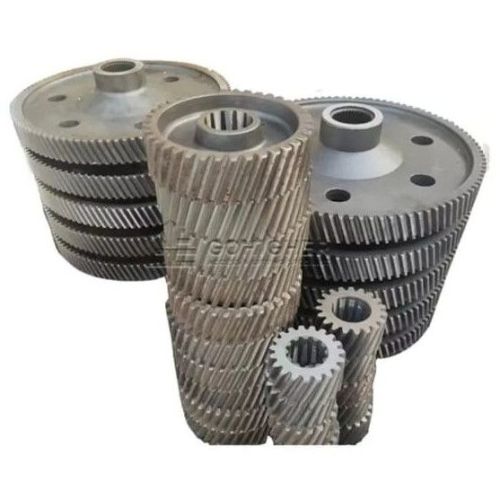

Leading Manufacturers, Exporters, Wholesaler, Retailer and Distributor of Heavy Duty EOT Crane Drive Pinion Gear and Precision Crane Pinion Gear from Delhi.
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Distributor |
| Brand Name | R.B. GEARS TECH |
| Material | EN8, EN19, EN24, Alloy Steel, Stainless Steel |
| Application | EOT Cranes, Hoists, Gantry Cranes, Material Handling Equipment, Industrial Gearboxes |
| Country of Origin | India |
| Gear Type | EOT Crane Motor Pinion |
| Module Range | 1 Module To 16 Module |
| Number Of Teeth | 10 To 120 Teeth |
| Outside Diameter | 40mm To 500mm |
| Shaft Diameter | 20mm To 150mm |
| Bore Type | Solid Shaft / Keyway / Splined |
| Pressure Angle | 20° / 14.5° |
| Hardness | 45–60 HRC (Heat Treated) |
| Accuracy Grade | DIN 6 To DIN 10 |
| Manufacturing Process | CNC Turning, Gear Hobbing & Gear Grinding |
| Surface Finish | Ground, Polished Or Black Oxide |
| Heat Treatment | Carburized, Induction Hardened & Tempered |
| Packaging Type | Corrugated Box / Wooden Crate |
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Distributor |
| Material | EN8,EN19,EN24,Alloy Steel,Stainless Steel |
| Brand Name | R.B. GEARS TECH |
| Country of Origin | India |
| Pack Type | Corrugated Box / Wooden Crate |
| Application | Tower Cranes,EOT Cranes,Gantry Cranes,Hoists,Material Handling Equipment & Industrial Gearboxes |
| Number Of Teeth | 12 To 180 Teeth |
| Gear Type | Crane Pinion Gear Set |
| Module Range | 1 Module To 20 Module |
| Helix Type | Helical / Spur |
| Outside Diameter | 50 Mm To 800 Mm |
| Bore Type | Plain Bore, Keyway Or Splined Bore |
| Pressure Angle | 20° / 14.5° |
| Hardness | 45–60 HRC (Heat Treated) |
| Accuracy Grade | DIN 6 To DIN 10 |
| Manufacturing Process | CNC Machined, Gear Hobbing & Gear Grinding |
| Surface Finish | Ground, Polished Or Black Oxide |
| Heat Treatment | Carburized, Induction Hardened & Tempered |
